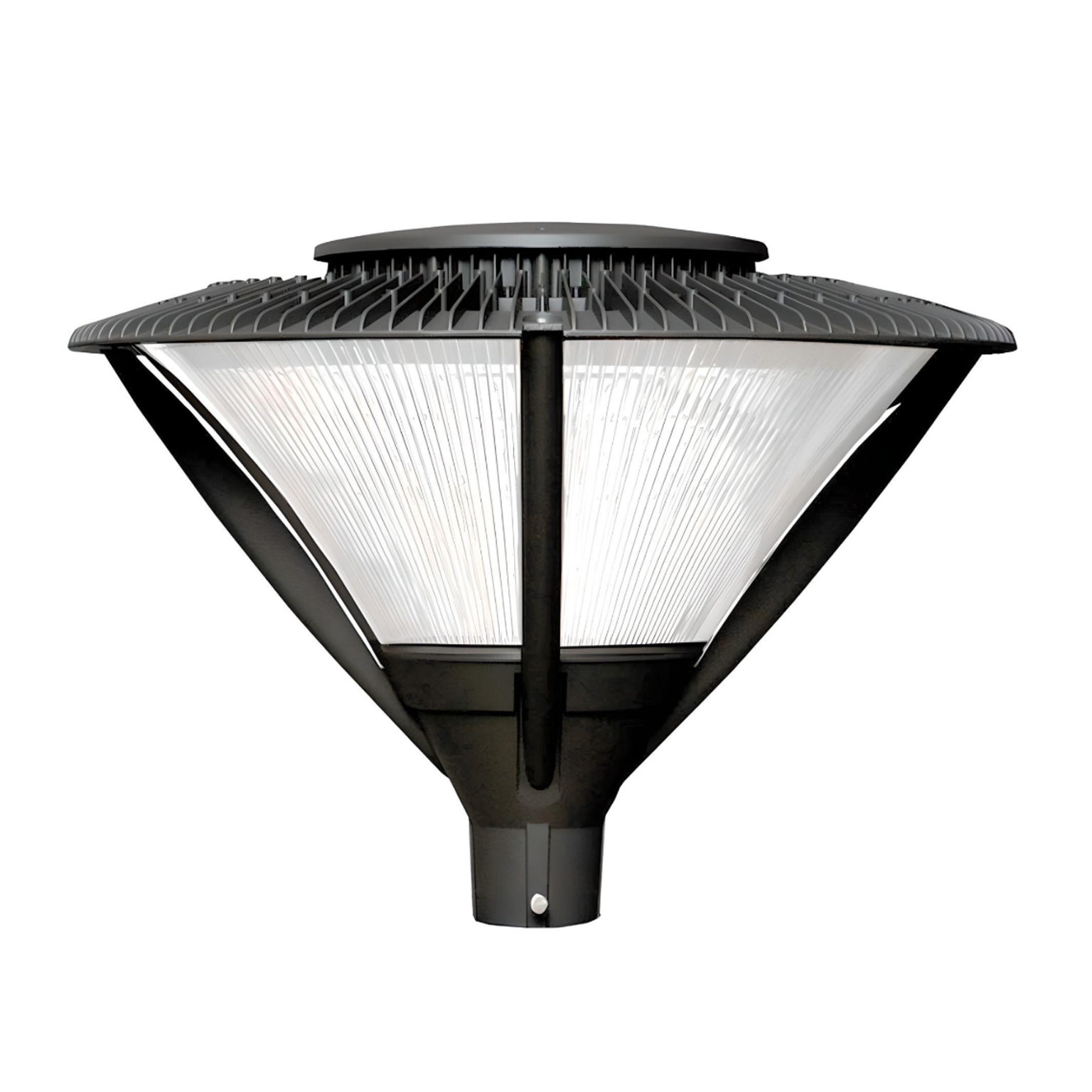

REVEAL-ENC 108W + 190W
Wall IP66 LED Post Top Luminaire
The REVEAL 108W & 190W is an IP66 robust top luminaire with an enclosed optic. Black powdercoat finish
Luminous Flux: | 13,000lm or 16,101lm |
System Power: | 108W or 190W |
Efficacy: | 97.7 L.Lm/cW |
Colour Temperature: | 4000k or 5000k |
CRI: | RA > 80 |
Colour Consistency: | 3SDCM |
Life Expectancy L70/F10: | 50,000hrs |
Body Construction: | Die cast aluminium housing and front frame. |
Dimensions: | Ø679mm (Diameter) |
Cut Out: | n/a |
Depth: | 505 mm |
IP Rating: | IP66 |
Finish: | Black |
Diffuser: | EnClosed |
Control Gear: | Standard, Non Dimming |
Wireless: | n/a |
Installation: | Ø76mm Post Top Spigot |
Distribution: | Direct |
Emergency: | n/a |
