Industrial Lighting

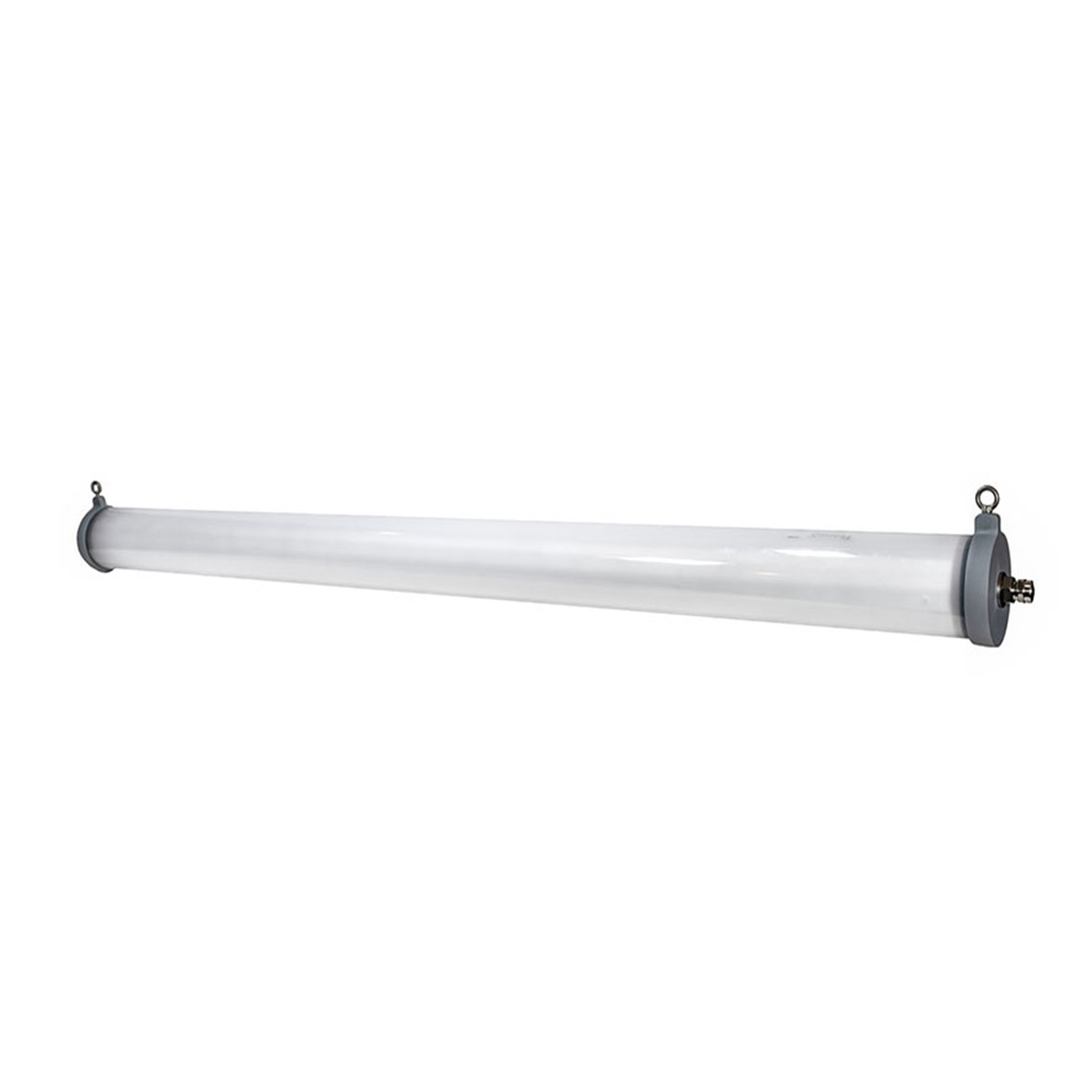

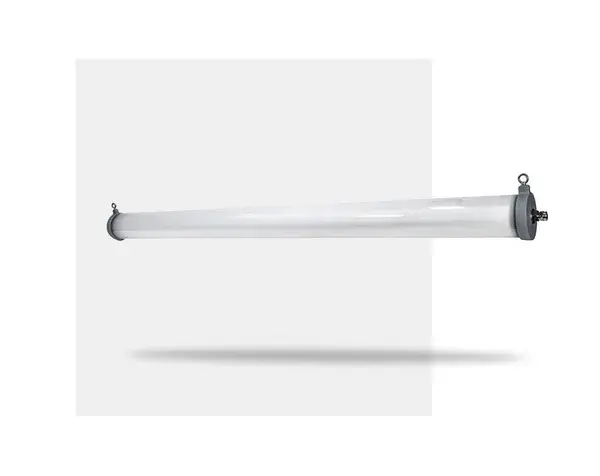

TUBE BAY
Industrial LED Luminaire
The PYROX is an explosion-proof LED luminaire engineered for extreme environments, with certification for hazardous area classifications Zones 1 and 21
| Luminous Flux: | (12) 7500lm or 10000lm (24)10000lm 20,000lm |
| System Power: | (12) 58W or 80W | (24) 80W or 160W |
| Efficacy: | Up to 129.3 l.Lm/cW |
| Colour Temperature: | 4000K or 5000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium alloy housing |
| Dimensions: | (12) 1255 x Ø80mm | (24) 2474 x Ø80mm (Length x Diameter) |
| Cut Out: | n/a |
| Depth: | 113mm (Caps) |
| IP Rating: | IP66 |
| Finish: | Grey end caps |
| Diffuser: | Opal |
| Control Gear: | Standard or 1-10V dimming |
| Installation: | Surface mounted or Wire suspended |
| Distribution: | Direct or Direct/Indirect available |
| Emergency: | ME3, ME3-ST, ME3-PRO |
