Standard Product Configurator

ALULINE100

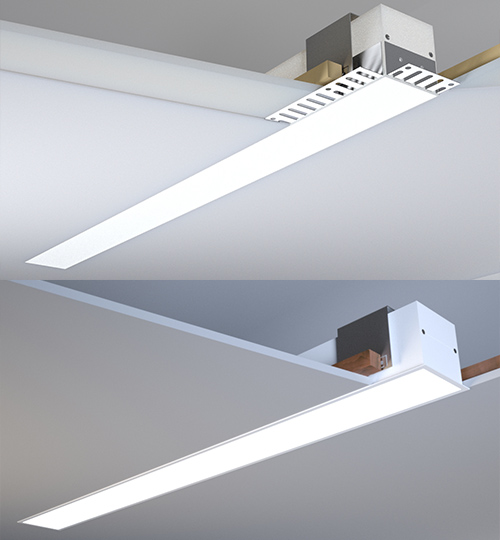

Various lengths – 100 x 108.5mm plaster in version / 114 x 108.5mm trimmed version including trim

A high quality recessed extruded system ideally suited for modular or continuous runs.

Specification Sheet LDT Files Drawing Installation Guide

STANDARD PRODUCT CONFIGURATOR*

Select one option in each of the categories below to configure your complete spec.
*Consult Master Specification Sheet and contact factory to specify custom lengths, sizes and/or shapes AND to select additional options that may be available such as integral downlight spots, alternative canopies and lenses, emergency packs, sensors and more.

Note:
This product is available in continuous lengths to suit your requirements, it can also be supplied as rectangles, triangles etc. For the purpose of this configurator we have restricted the options to 3533mm, for other options please contact the MID Technical Department.

Some older browsers, such as Internet Explorer, may not download the specification sheet, please use Chrome or similar for best results.
