Downlights & Display Lighting

ILS S5

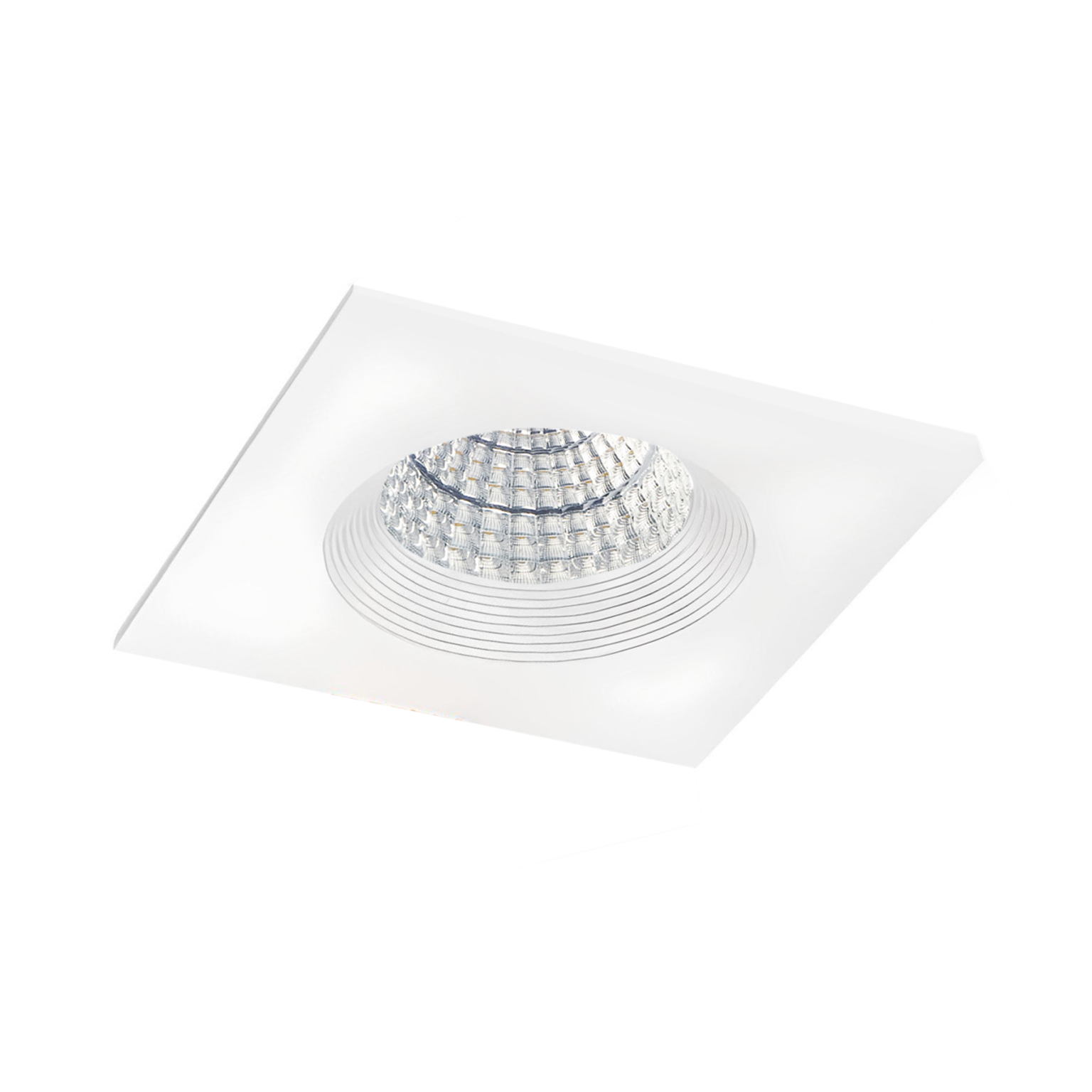

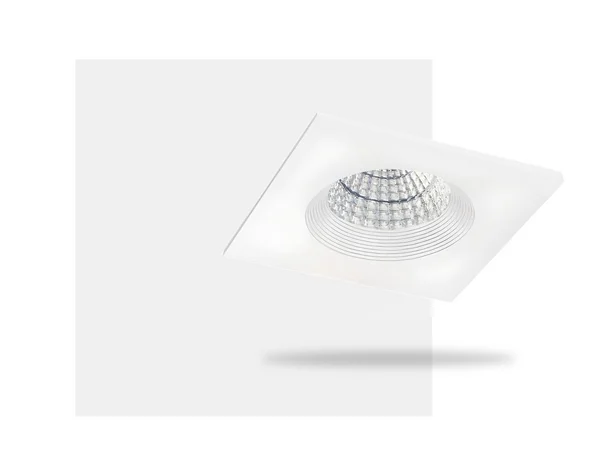

Adjustable ILS Downlight with S5 attachment

The fixed ILS S5 downlight is a competitive, interchangeable and architectural LED downlight system. An alternative light engine to a MR16 or GU10 lamp.

Luminous Flux: 650lm or 950lm
System Power: 8W or 11W
Efficacy: 81.3 L.Lm/cW
Colour Temperature: 3000k or 4000k
CRI: RA > 80
Colour Consistency: 3SDCM
Life Expectancy L70/F10: 50,000hrs
Body Construction: Aluminium housing with a polycarbonate reflector
Dimensions: 80 x 80mm (Length x Width)
Cut Out: Ø70mm (Diameter)
Depth: 60mm (8W) or 85mm (11W)
IP Rating: IP20
Finish: White Standard, Black, Silver or Grey
Diffuser: Clear
Control Gear: Standard, DALI, SDIM or MDIM
Wireless: Available
Installation: Recessed
Distribution: Direct
Emergency: RME3, RME3-ST, RME3-PRO or RME3-WI
