WAFER-C-RECESSED

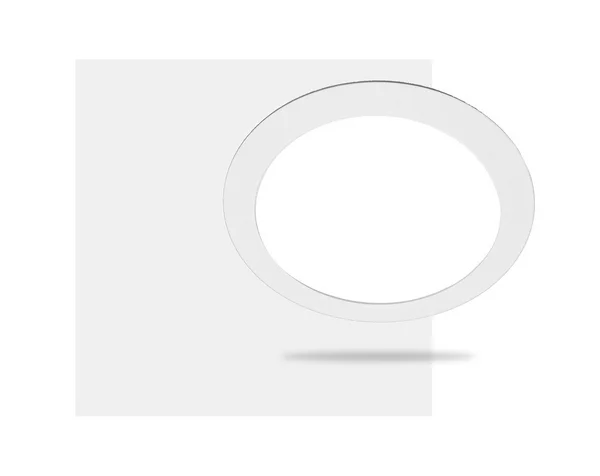

Recessed WAFER Circular

The Wafer-c is an architectural, circular, ultra-shallow LED solution. Recessed, ideal for restricted ceiling heights and voids.

Luminous Flux: 537 - 2840lm
System Power: 8 - 28W
Efficacy: 75.2 L.Lm/cW
Colour Temperature: 3000k or 4000k
CRI: RA > 80
Colour Consistency: 3SDCM
Life Expectancy L70/F10: 50,000hrs
Dimensions: Ø117mm, Ø180mm, Ø240mm or Ø300mm
Cut Out: Ø108mm, Ø165mm, Ø225mm or Ø282mm
Depth: 19mm without driver, with driver may vary
IP Rating: IP20
Finish: White
Diffuser: Opal
Control Gear: Standard, DALI, SDIM or MDIM
Wireless: Available
Installation: Recessed
Distribution: Direct
Emergency: RME3, RME3-ST, RME3-P RO or RME3-WI
