Industrial Lighting
ECOLINE

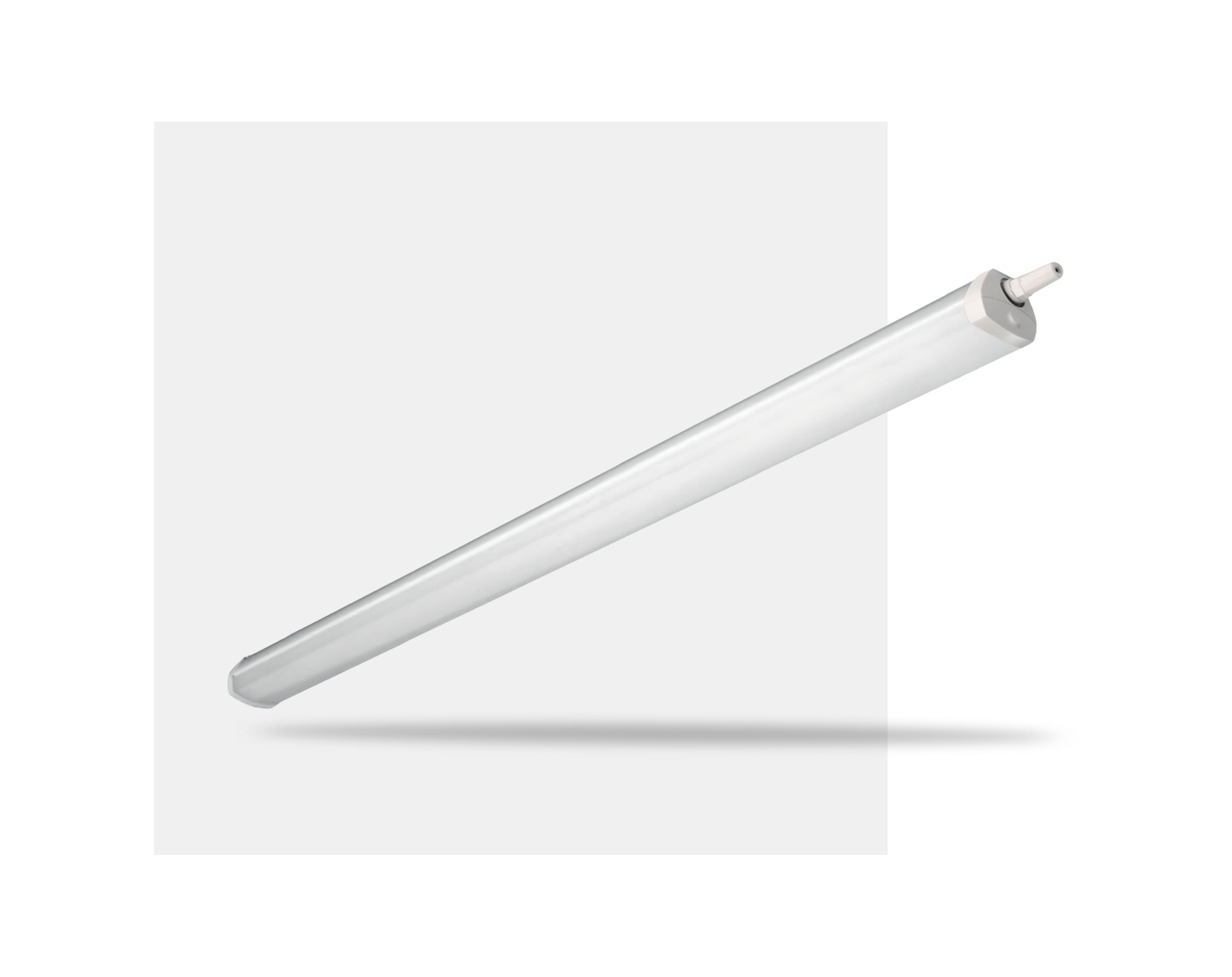

Industrial Linear LED Luminaire
The ECOLINE is a part-L compliant industrial light design for data centres, corridors, warehouses and amenities. Sealed to IP65 or IP66, it is also suitable for exterior applications.
| Luminous Flux: | 1,500 - 9,150lm |
| System Power: | 12 -70W |
| Efficacy: | 129.9 L.Lm/cW |
| Colour Temperature: | 3000k, 4000k or 65000k |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Frosted polycarbonate |
| Dimensions: | (620 - 2950) x 88mm (Length x Width) |
| Cut Out: | n/a |
| Depth: | 81mm |
| IP Rating: | IP65 as standard, IP66 available |
| Finish: | White (End caps) |
| Diffuser: | Frosted Opal |
| Control Gear: | Standard, 1-10V or DALI |
| Wireless: | n/a |
| Installation: | Suspended brackets, surface or trunking mounted |
| Distribution: | Direct/Indirect |
| Emergency: | RME3, RME3-ST, or RME3-PRO |
